COMMERCIAL GRADE PANEL EDGE CLOSE-OUTS

Edge closeouts provide structural support to the most vulnerable parts of the panel, the edges and corners.



They seal the panel from moisture and chemical vapors that can cause delamination.



They can also provide cosmetic appeal and give the appearance of a solid sheet that has a fraction of the weight.



Edge closeouts are co-fabricated or post-fabricated depending on when in the assembly process they are incorporated.

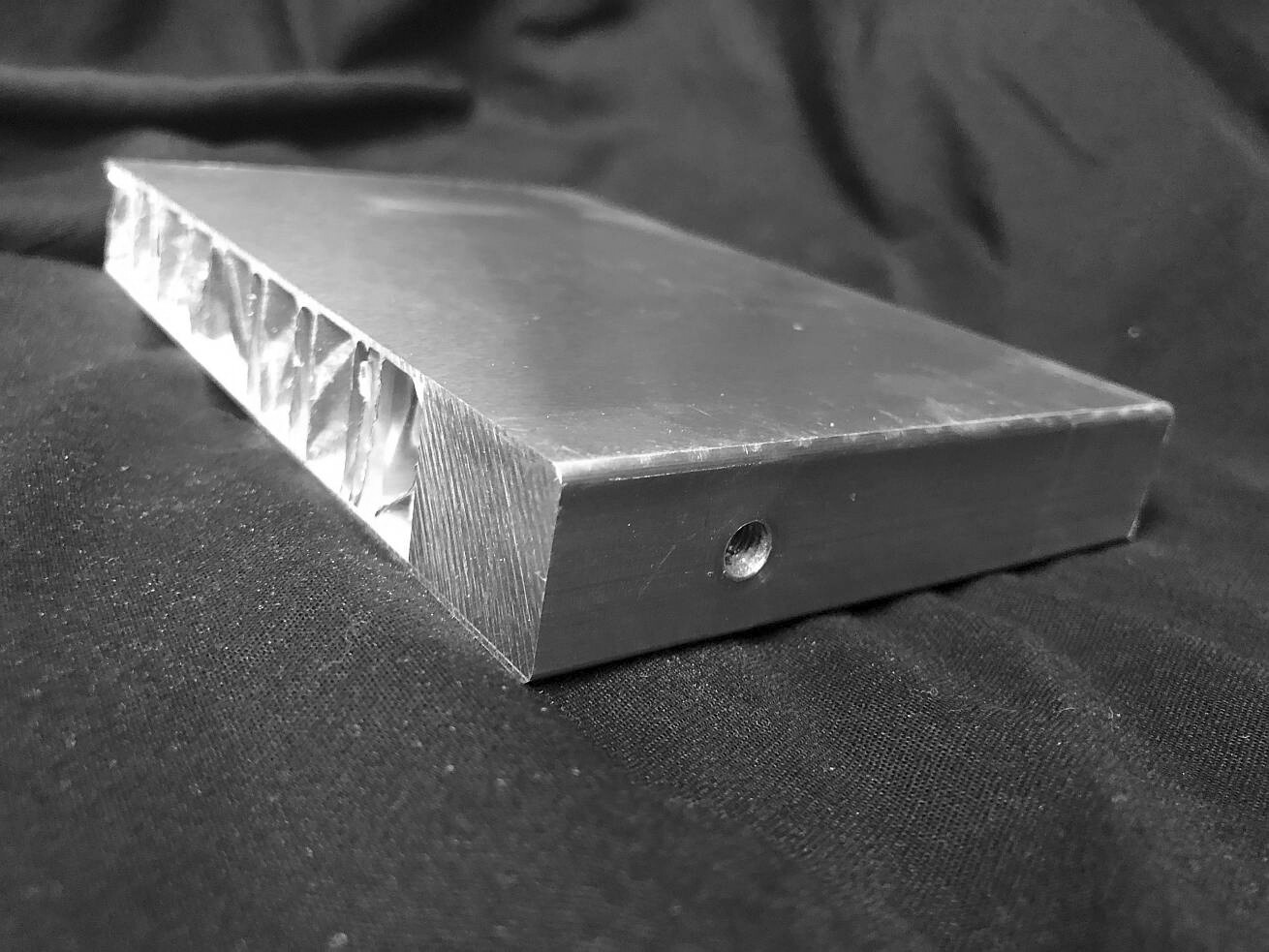

Solid Aluminum Frame:



  • Co-fabricated, bonded into panel
  • Allows for final sizing of panel, keeping the solid edge
  • Can be drilled and tapped for edge features

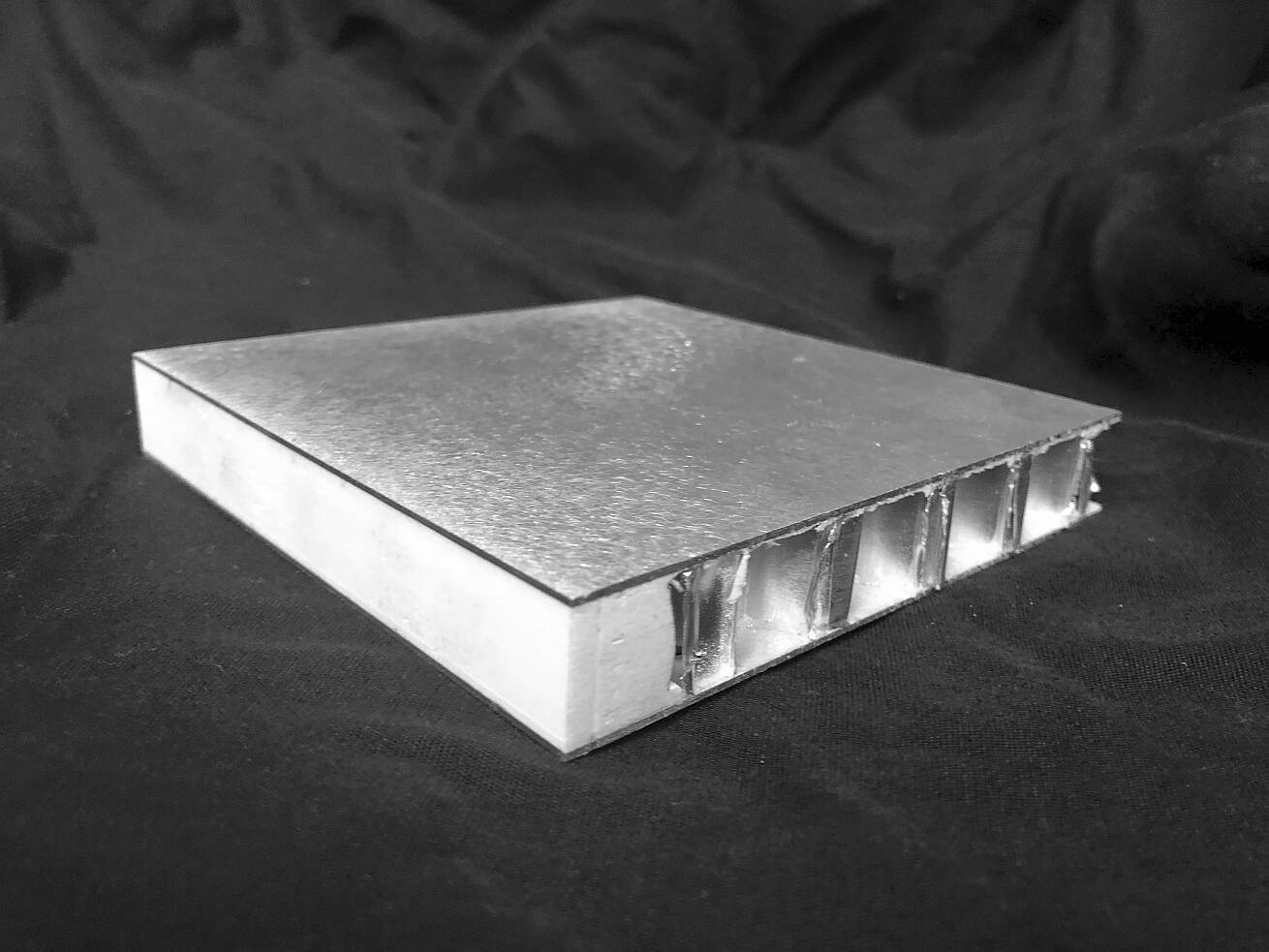

Epoxy Edge Fill (fire rated and non fire rated):



  • Post-fabricated, to accommodate curved and custom shapes
  • Ready to paint
  • Can be drilled and tapped for edge features
  • Versatile lightweight option

Legs Out Channel:



  • Co-fabricated, bonded into panel
  • Allows for final sizing of panel
  • Used for connecting panels with a spline joiner

Poplar Frame:



  • Co-fabricated, bonded into panel
  • Allows for final sizing of panel, keeping the solid edge
  • Helicals and inserts can be added for edge features
  • Versatile lightweight option

Aluminum Tube Frame:



  • Co-fabricated, bonded into panel
  • Allows for final sizing of panel
  • Versatile lightweight option
